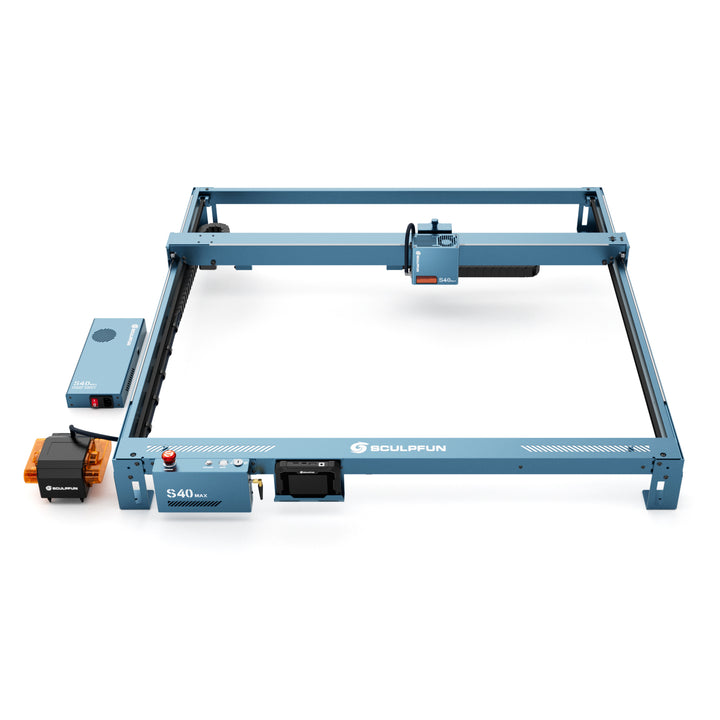

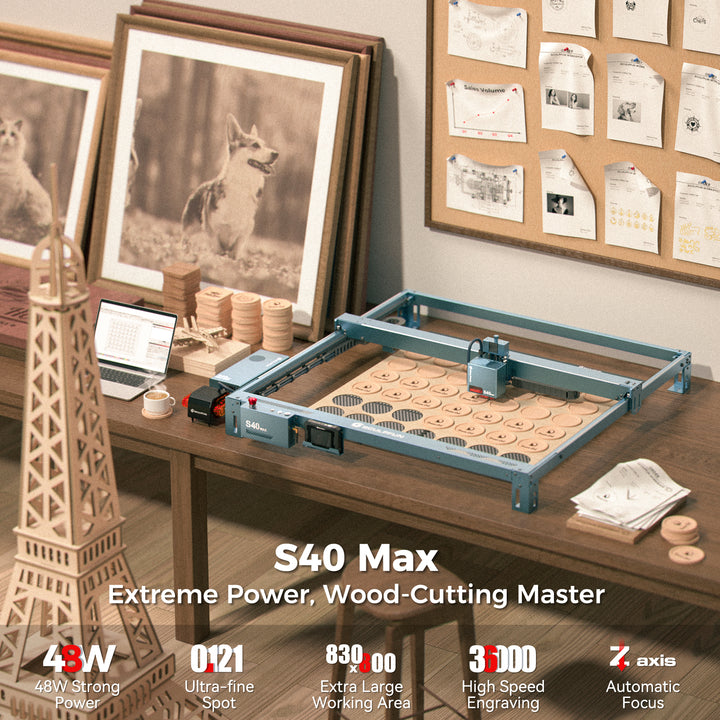

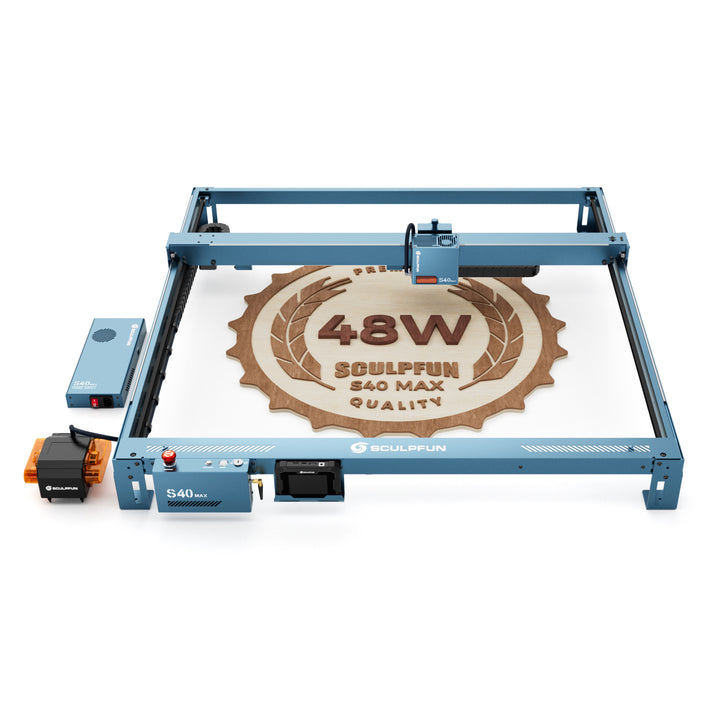

[Preorder]Sculpfun S40 MAX 48W Laser Engraver Cutting Machine 50L Air Assist Kit 830*800mm Engraving Area One-Click Auto-Focus

Main Features:

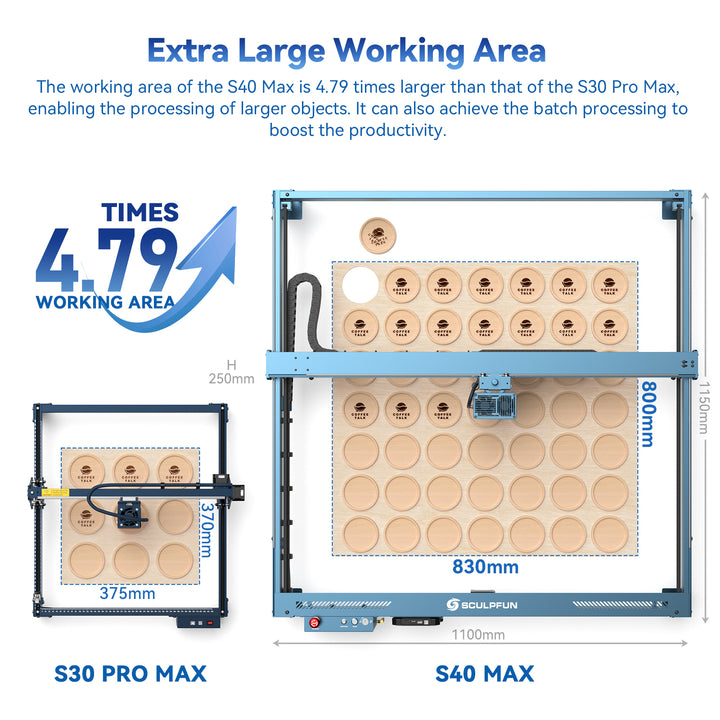

1. 830*800 Extra Large Working Area:
Featuring a frame placement area size measuring 980mm×1000mm, the Sculpfun S40 MAX is perfect for accommodating super large materials. Its extra large working area of 830*800mm enables the processing of larger objects, catering to diverse needs. In addition, the maximum marking speed can reach up to 36000mm/min, which makes it easy to process large area cutting and batch engraving, ideal for studios, enthusiasts as well as professionals.

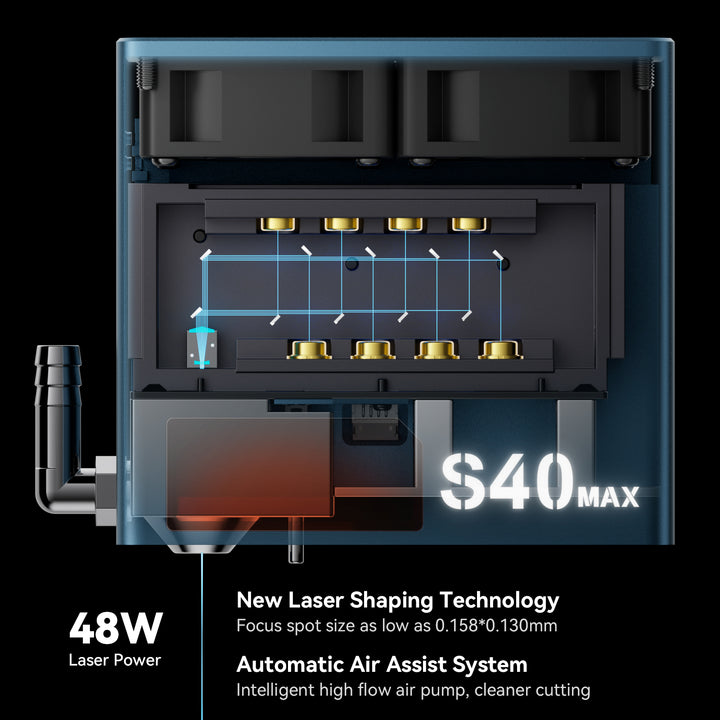

2. 48W Ultra Powerful Laser:

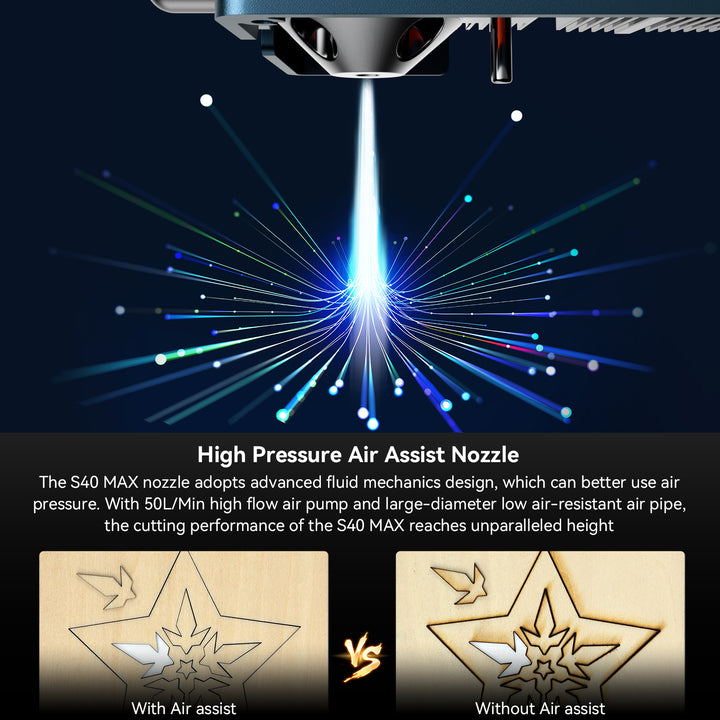

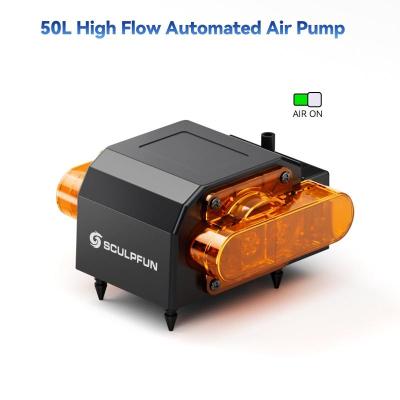

The S40 MAX is a professional laser engraving machine which utilizes twelve 6W semiconductor laser chips with a maximum chip laser power of up to 48W, empowering the machine with higher performance and delivering the exceptional efficiency. Full 100% power with the standard 50L high flow air pump, which can cut 20mm plywood and 6mm dark acrylic at one pass time.

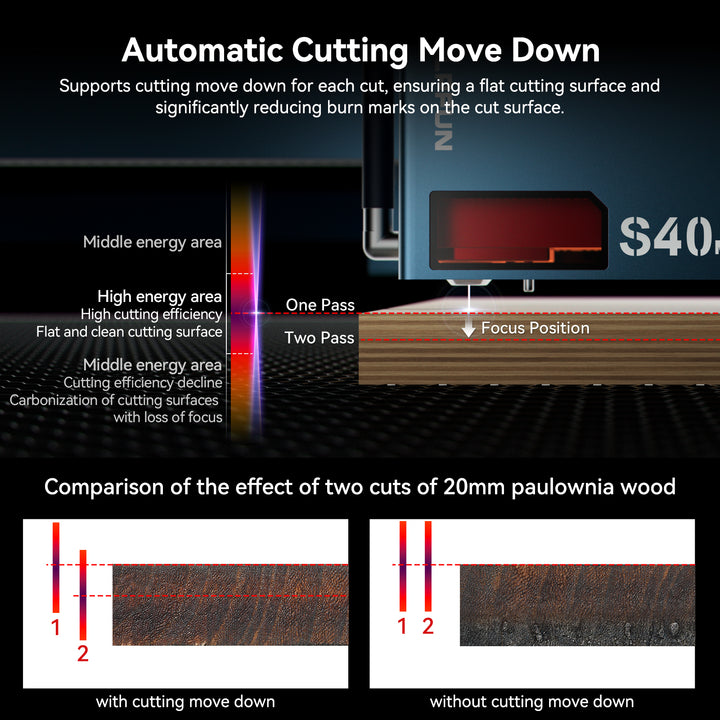

3. Strong Cutting Effect:

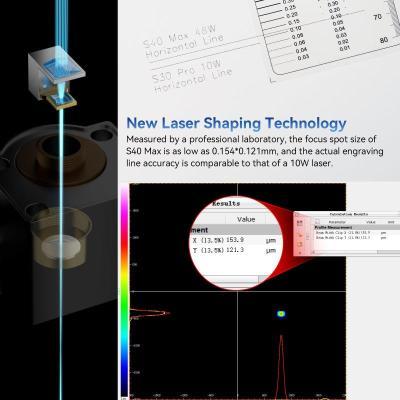

Sculpfun S40 MAX adopts the latest fiber optic spot compression technology, with an ultra-fine spot size of 0.154*0.121mm. It supports Z-axis offset in LightBurn software and supports cutting move down for each cut, ensuring a flat cutting surface and significantly reducing burn marks on the cut surface.

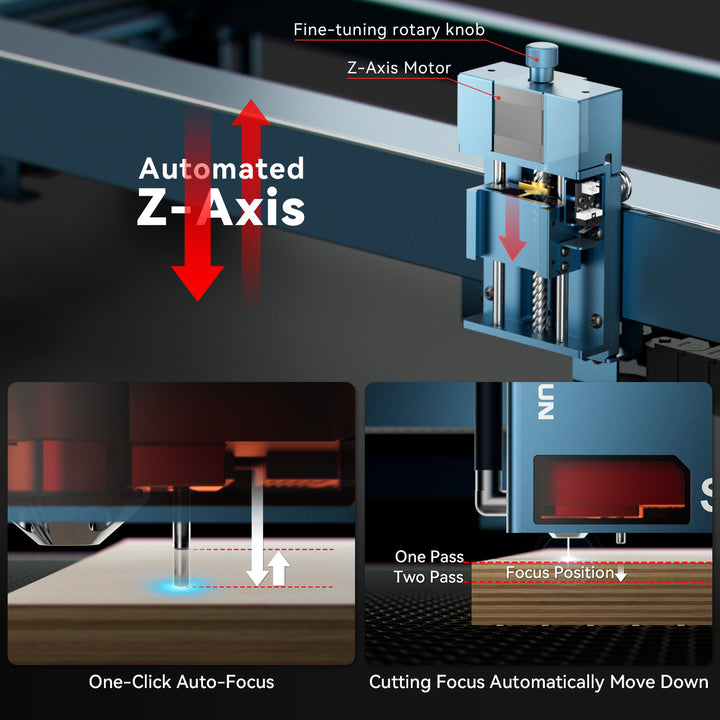

4. Auto-Focus Function:

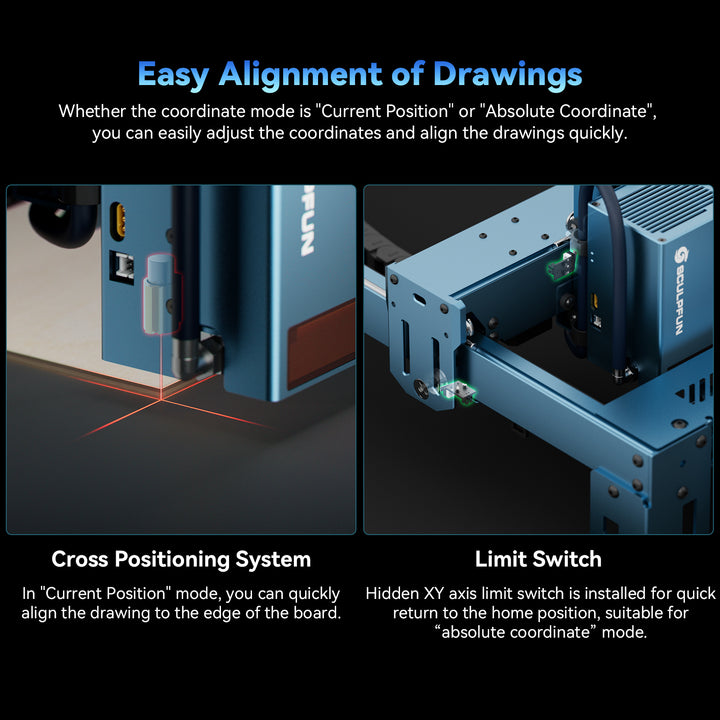

This S40 MAX laser cutter is designed with an auto-focus button, allowing the machine to automatically complete the focusing process with a press of the auto-focus button, ensuring quick project initiation. Combined with the cross positioning system, it greatly enhances the efficiency of focusing. The laser comes with a dirty lens detection, prompting the user to replace the lens in a timely manner to maintain the machine performance.

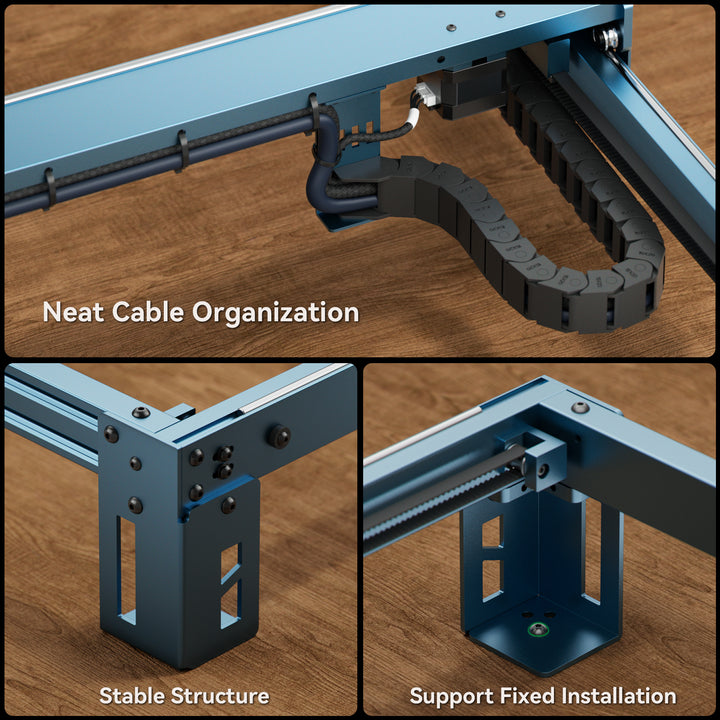

5. Stable Structure:

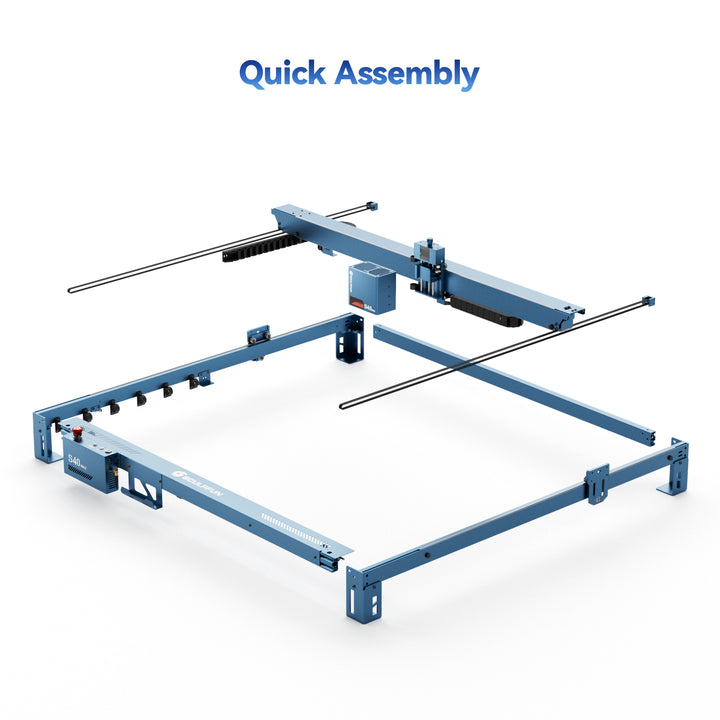

It is equipped with four support feet and fixed holes, using the new type of three-axis three-roller structure. This design enables high-speed and smooth operation as well as low noise during working, making it suitable for heavy-duty engraving and cutting tasks.

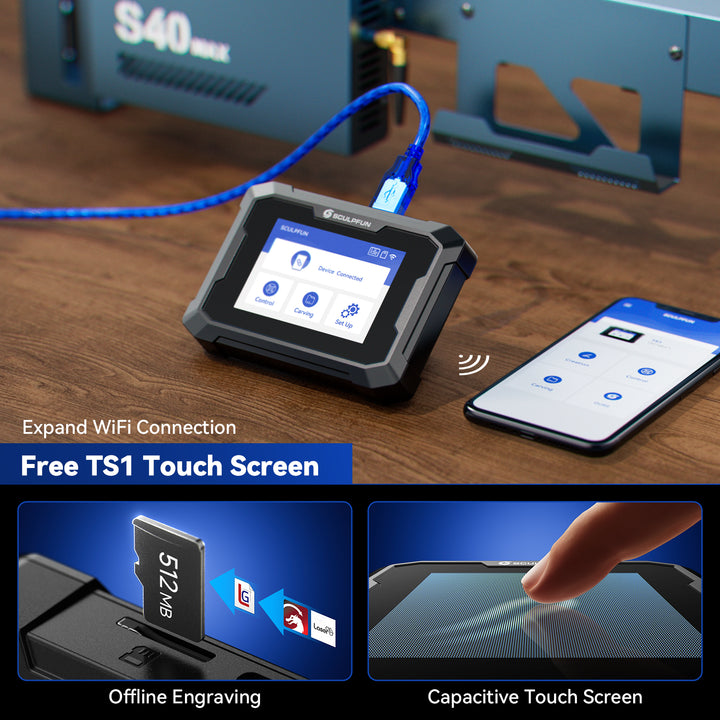

6. Offline Work:
S40 MAX 48W laser engraver comes with a TS1 touch screen, which can realize offline work without a computer by importing the files in advance. Moreover, it can also be connected to the Sculpfun APP via TS1's Wi-Fi, and the slicing work can be completed with a cell phone.

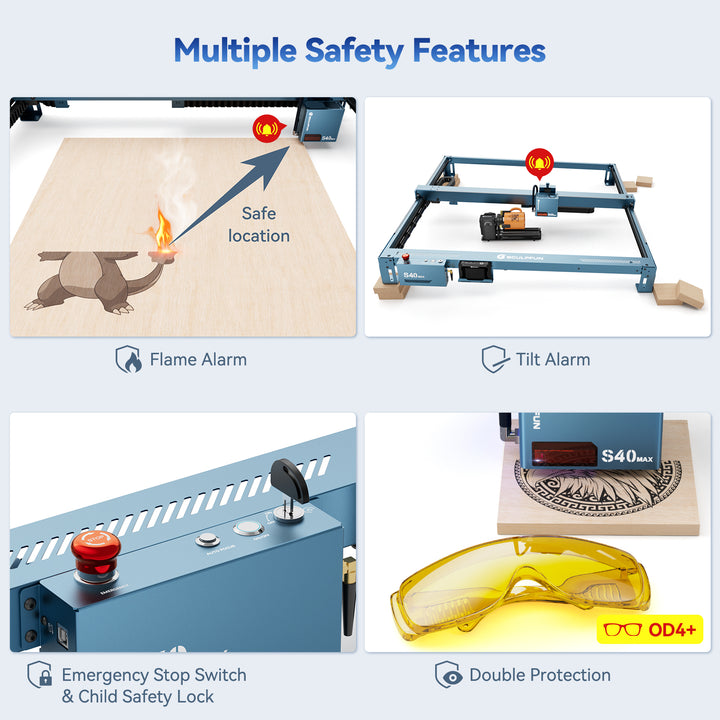

7. Safety Features:
Featured with multiple sensors including tilt detection, flame detection, emergency stop switch, safety lock, along with the OD4+ goggles as standard, this versatility ensures the safety of users.

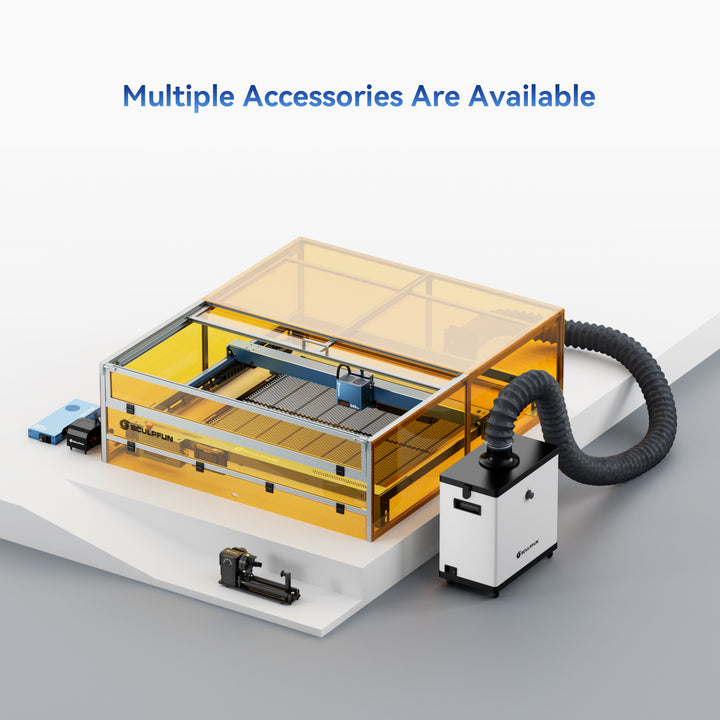

8. Multiple Accessories Compatibility:
A wide range of laser engraving machine accessories are offered for the S40 MAX. By selecting the optional ones like the 800*800mm large honeycomb working panel, B70 large enclosure and SP1 smoke purifier to provide you with a more comfortable working environment.
NOTE: Accessories need to be purchased separately

Product Name: Sculpfun S40 MAX
Model: S40 MAX

Laser power: 48W
Laser wavelength: 455nm
Spot size: 0.154*0.121mm
Marking speed: 36000mm/min
Processing material type: wood, leather, acrylic, stone, ceramics, glass, paper, etc.
Engraving area: 830*800mm
Repeat positioning accuracy: 0.1mm
Focusing method: auto focus + manual focus
Supported Systems: Android / iOS / Windows / macOS
Application: Lightburn / LaserGRBL

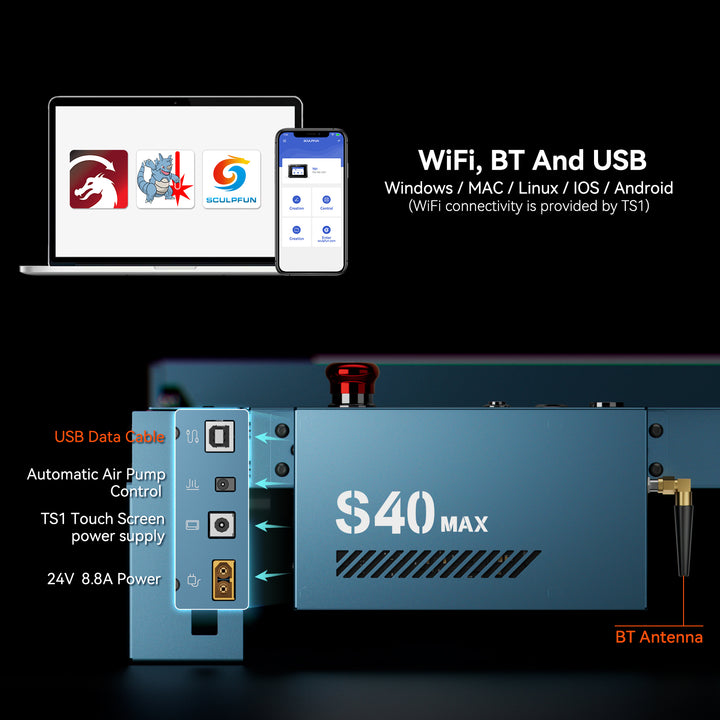

Connection: WIFI (connected via TS1) / USB
Operating voltage: DC24V
Operating current: 14.6A
Input power: 350W
Machine size: 1154*1113*240mm
Machine weight: 15.2kg
Package size: 1180x380x280mm
Packing weight: 22kg

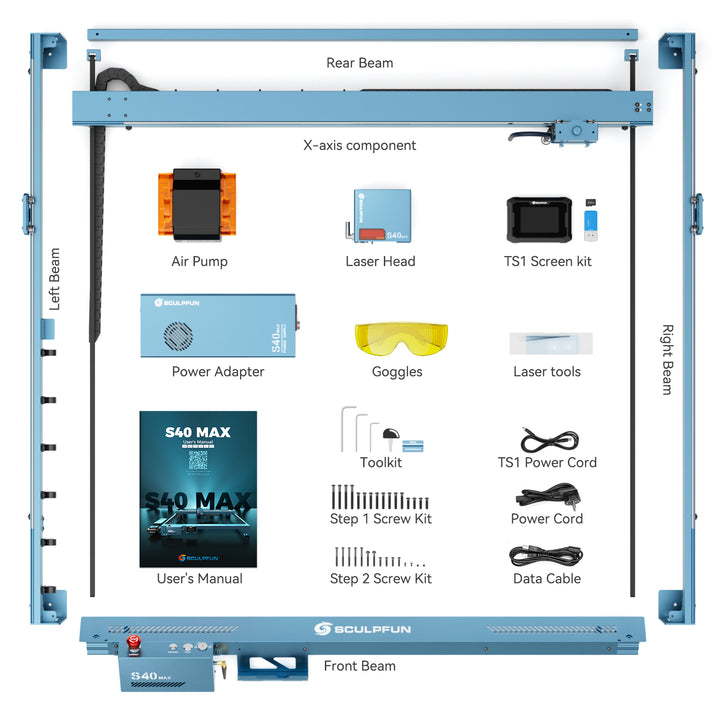

Packing List:
1 set *Sculpfun S40 MAX frame (5pcs)
1 *48W laser
1 *laser accessory box
1 *TS1 touch screen
1 *power adapter
1 *power cable
1 *TS1 adapter cable
1 *data cable
1 *air pump
1 *fixed focus column
1 *screw kit
1 *toolkit
1 *goggles
1 *user manual
